Light Monkey - Heat Controller v2.0 - Stand-Alone
The Heat Controller v2.0 was designed to go inline between a battery canister and heated drysuit systems. By toggling the switch, you reduce the power that is going to the heated undergarments and extend your burn time. Power levels available are 100%, 80%, 60%, and 30%. To reset back to 100%, simply switch the canister off for 10 seconds.
LED indicator light flashes for every drop down in power:
100% - Indicator remains on
80% - 3 flashesÂ
60% - 2 flashesÂ
30% - 1 flash

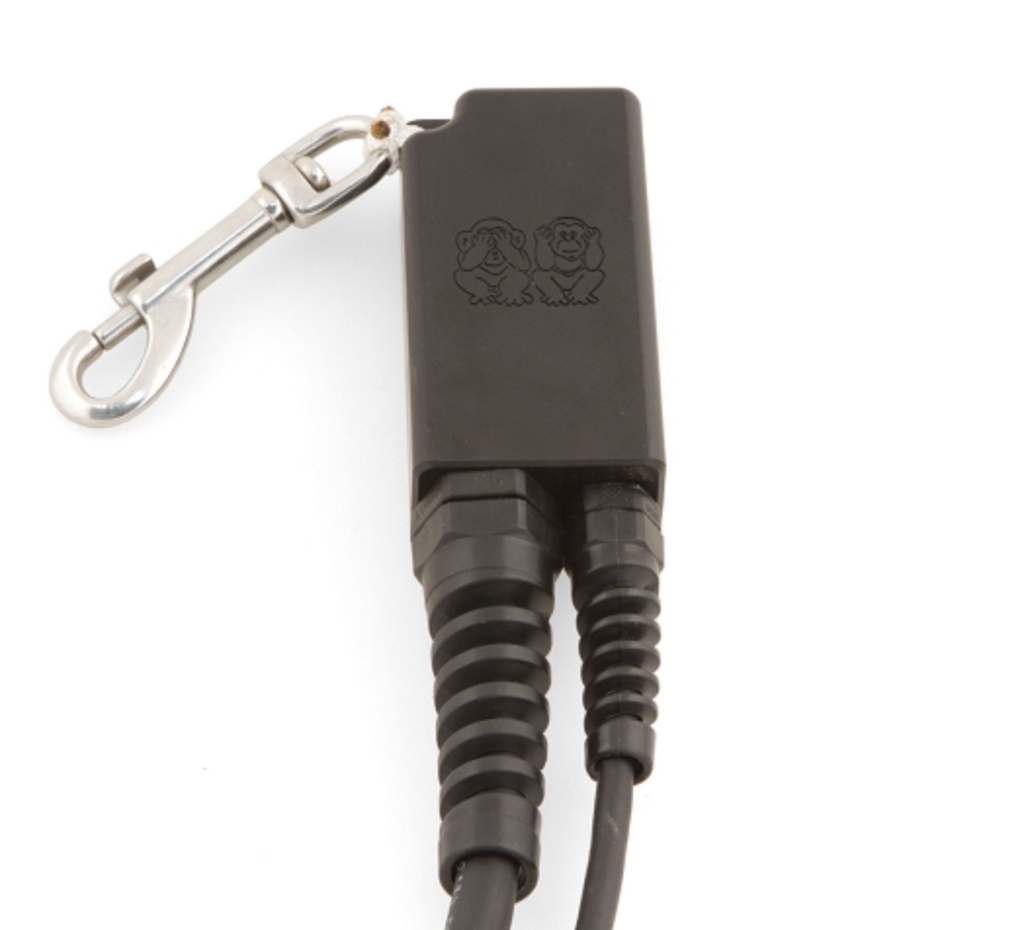

Delrin Housing 3.25 (8.26 cm) x 1.75 (4.45 cm) x 1 (2.54 cm) with cut out for bolt snap
Drysuit E/O - Diameter 0.225" (5.75 mm), Length 10" (25.4 cm)
Battery E/O - Diameter 0.362" (9 mm), Length 10" (25.4 cm)
