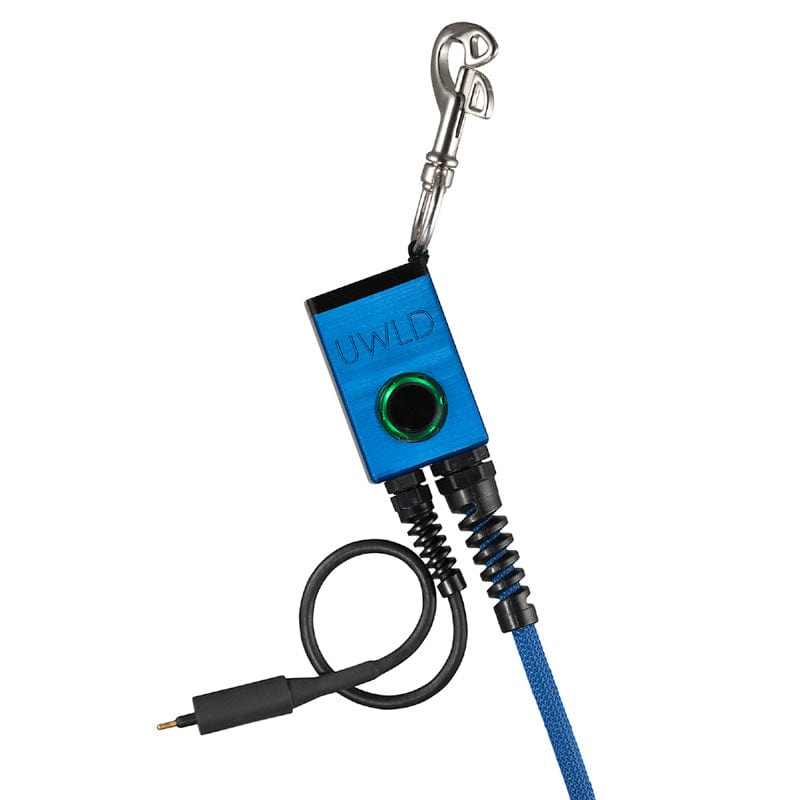

Plug it into your heated drysuit under garments, and it keeps you toasty warm. It's that simple.

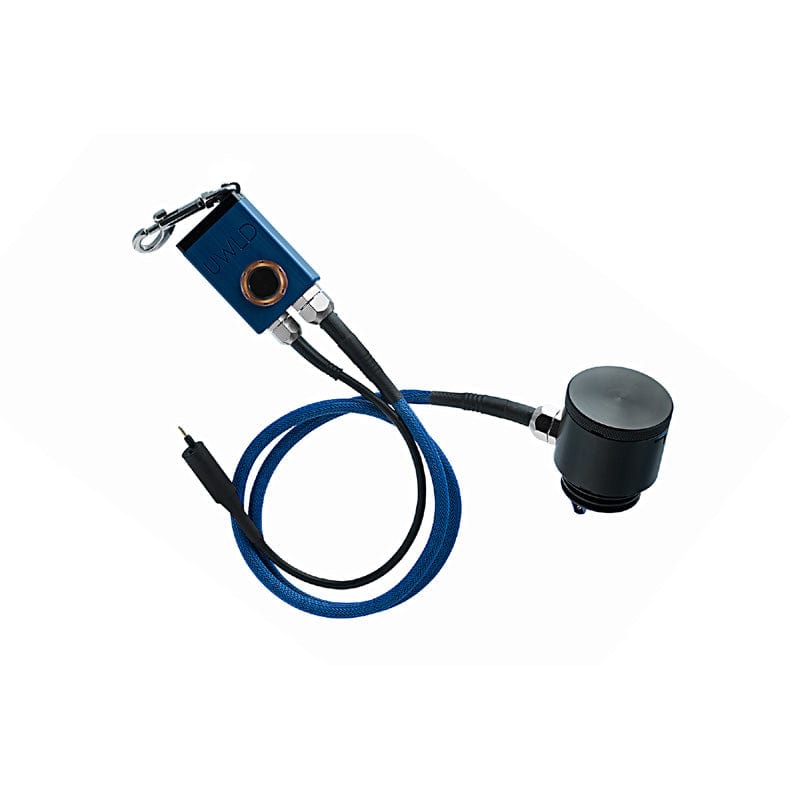

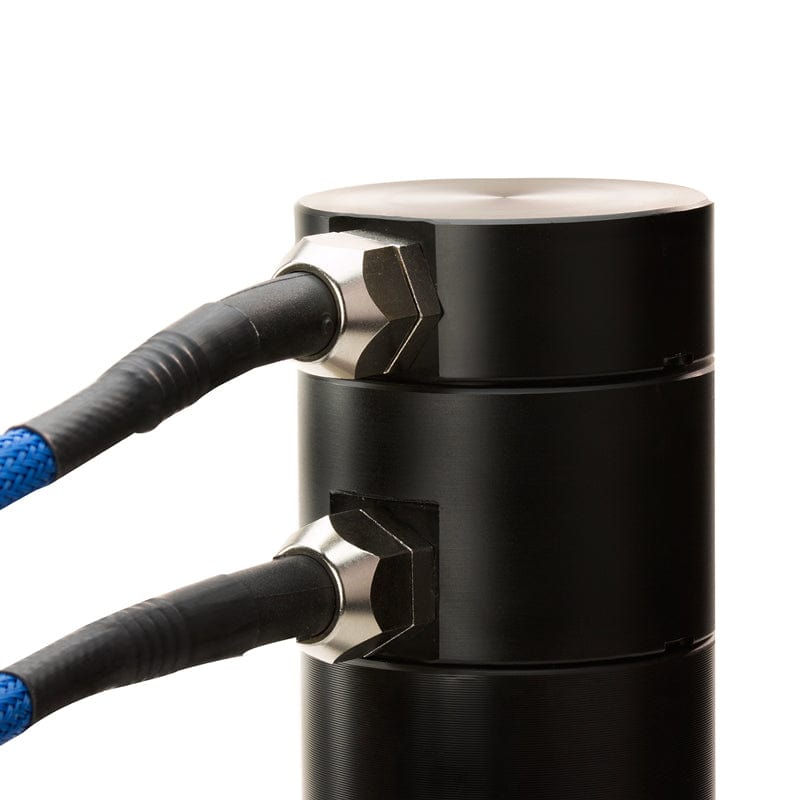

Stacking Cap - Now you can have both heat and light on the same battery canister. The stacking cap allows a second cap to be stacked on top of this canister cap. Comes with a blanking cap to use stand alone.

Description

Main Features

• LED battery status indication around the Piezo switch. Eliminates guessing battery charge and extends the life of the battery by only charging when needed.
• Constant heat output from start to finish of battery
  • Heat does not decrease with battery level; very important for optimal decompression
• 5 heat levels for range of comfort in water of -3c to 20c (23F° – 68°F)
• Piezo switch control for both on/off & changing heat levels
  • Eliminates the high failure rate of boot switches
  • Mechanical switch does not have to be toggled to adjust levels
• LED indicator for battery status indication (high/green, medium/yellow, low/red), power on/off, & heat level setting
• Can be used independently or with lights on the same battery
• Small, compact & light weight design

Compatibility

• Compatible with all UWLD Latchless Batteries
• Comes standard with the stack cap for the Latchless Battery
• Stack cap allows the controller to be added or removed with ease
• Industry standard wetmate E/O connection
• Supports all 12v heated under garments
• Incompatible with lights heads run downstream of the controller
• Incompatible with non-UWLD battery canisters

The Science

• Research has shown optimal decompression occurs when warm
• The body may be cool on descent, but should be warm on ascent
• Dr. Neal Pollock from DAN discusses Thermal Physiology and how temperature effects decompression in Broadcast 1  &Broadcast 2
  • Warm is 36C (96°F) | Cool is 27C (81°F)
• Being warm at the beginning of the dive increases the uptake of inert gas
  • Being cold at decompression confounds decompression

Why UWLD?

• Leverage existing investment in light and batteries
• Advanced technology ensures consistent heat at the most crucial time, the end of the dive. Traditional solutions offer only 75% of heat at bottom low end of the battery.
• Double O-Ring Seal
• LED feedback removes guessing of set heat levels
• LED battery level indication

Battery Burn Time

• The controller runs slightly above undergarments rated wattage on high
• To calculate burn times, UWLD suggest that 110% of wattage be used. If a diver has a 60W vest, they should calculate burn time for 66W for the high setting.
• Each level drops the power consumption by 20%; for a 60w vest: Level 4 = 53W; Level 3 = 40w, Level 2 = 26.5W, and Level 1 = 13W.
• With a light, add the light and vest wattage then divide by canister rating:
  • 30W (LD-35) 60W vest(X 110%)= 96W /160Wh (canister rating)
    • Both on high yields 1.66 hours on a tall canister
    • Light on high, vest on low yields 3.7 hours on a tall canister
